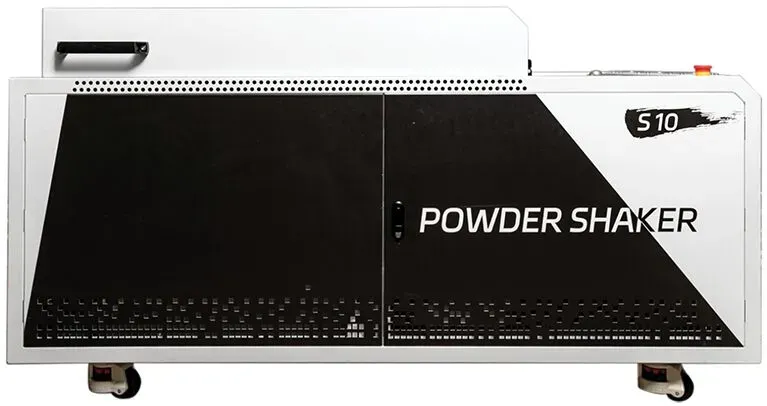

STS Automatic TPU Shaker 24" inch - S10

The STS Automatic S10 TPU Adhesive Powder Shaker is equipped with an internal HEPA Charcoal Air Filter that collects all impurities from the exhaust system. Allowing for evenly spreading heat inside the curing chamber, then melting the exact amount of adhesive material directly onto your design saving time, effort and cost. This NEW model is equipped with a handy vacuum absorption platform and infrared heat drying, you are assured a smooth result every time.

STS 24” S10 Auto Shaker Features:

• HMI adjustable temperature - 4.5” Touch Screen.
• Top & bottom Infrared drying.
• AUTO & MANUAL interface with Mesh/belt driven conveyor with Vacuum system.
• Automatic TPU Powder weight distribution control.
• Tension Feed/Take-up reel.
• Built-in air purifier with charcoal and HEPA filter.

Specifications for S10 STS TPU Shaker/Curing system:

• Max width: 24” / 610mm
• 208/220V 50/60Hz Single-Phase 30Amp
• Shaker Size: 46”W x 73”L x 42”H
• Crating /Packaging size: 46” W x 75” L x 44”H
• Shipping weight: 815 lbs
• Unit Net weight: 552 lbs

** Contact Tech Support for settings and remote installation
