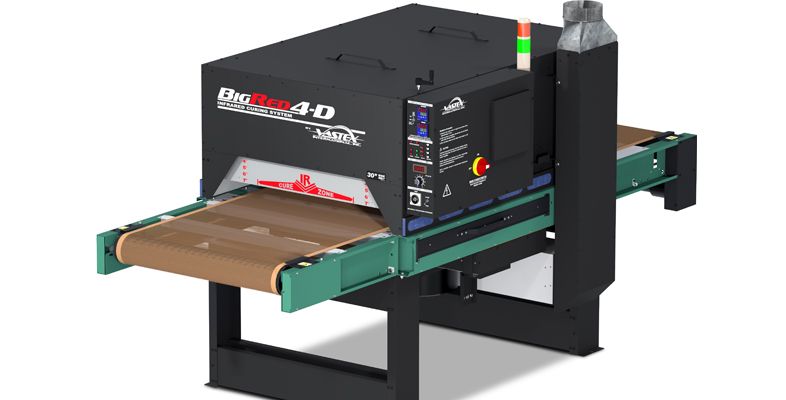

VASTEX BIG RED Conveyor Dryer

FASTER PRODUCTION

• 475 - 950+ plastisol shirts/hr*
• 216 - 432+ water-based or discharge shirts/hr*
• 72 - 144+ DTG shirts/hr* with digital white ink

Equipped with:

SMART: Unique cooling bed at exit cools as garments exit the chamber

SAFE Light tower to monitor dryer status, cool-down mode for easier shut-down and fault detection on the exhaust

QUIET The new BigRed 4D models are 20% quieter than earlier models

ACCURATE Temperature controller accurate to +/-1°F (+/-0.5°C) Digital PID with fuzzy logic — industry's most advanced

ADJUSTABLE Hand crank raises or lowers all heating chambers simultaneously to within 2" - 7" (5 - 17.7 cm) of the belt for bulky items or hats. Models with side heaters can be adjusted from 4 to 7 in. (10 - 17.8 cm) from belt to heater.

CONVENIENT Digital belt speed voltmeter — a must have

VERSATILE Make-up Air and Negative Exhaust Air — removes moisture and fumes ultra-fast

FILTERED Filtered air intake prevents dust contamination of images. Filtered exhaust prevents garment lint from entering the blower or exhaust stack

HEAVY DUTY"X-Series" Conveyor Belt Tracking System

BELT WIDTH
(Maximum garment width)
30" (76 cm) or 54" (137 cm)

HEATER WIDTH
24" (61 cm) or 48" (122 cm)

MAXIMUM IMAGE WIDTH
18 in. (46 cm) or 42 in. (107 cm)
(Heater width minus 6 in. [15 cm])

EXPANDABLE Add Heat Additional chambers and 1-1/2'ft and 3'ft Belt Extensions
