Vastex D-1000 Conveyor Dryer

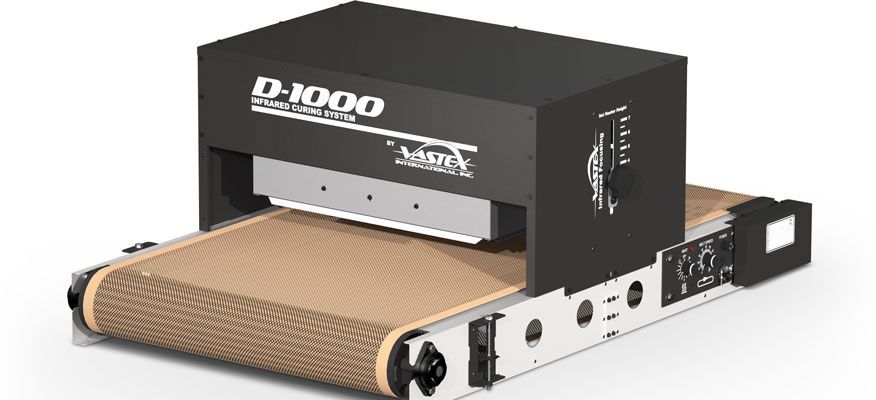

Vastex D-1000 Entry Level - Infrared Conveyor Dryer equipped with Heat & Speed adjustment controls, tilting heater for CAPS. Compact conveyor belt width 26" (66 cm). This model ships Un-Assembled in 5 Boxes, optional Pre-Assembled is available.
Electrical specs: 120 or 240volts 16.5amps w/2,050watts
Warranty: 15 years (Heaters) & 3 years (Electrical Parts)
SMART Teflon coated fiberglass belt with tracking system
BELT WIDTH:
26" (66 cm)
(max garment width)
HEATER WIDTH: 20" (51 cm)
ADJUSTABLE Speed, temperature, heater height and tilt
FASTER Production:
110+* shirts per hour with plastisol and 50+* with discharge
PRECISE & Powerful infrared heater with tight coil pattern and heat shields
EXPANDABLE: Optional 10" front conveyor extension available
Additional Options:

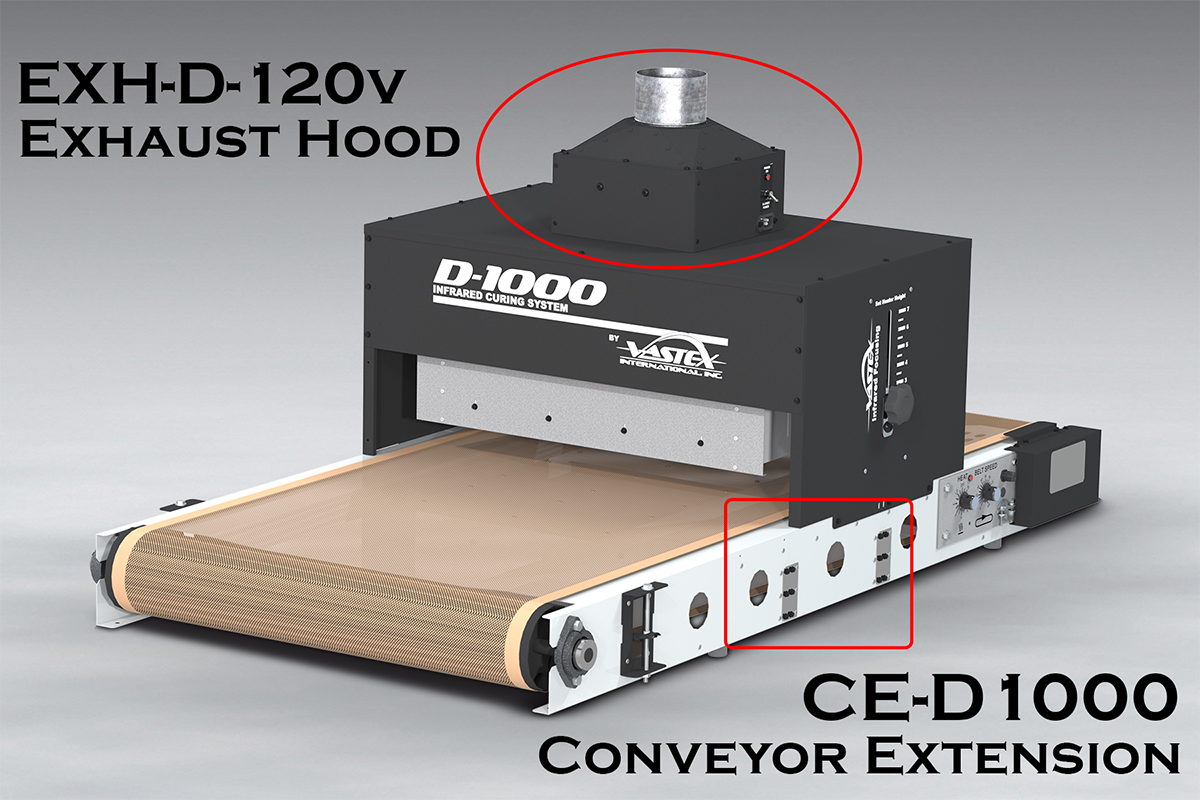

- CE-D1000: Optional 10" (25.4 cm) FRONT In-Feed Conveyor Extension

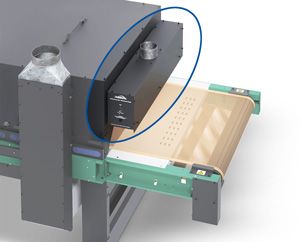

- EXH-D-120v: Optional powered exhaust removes moisture and fumes — ideal for working in confined spaces.
- EXH-D1H: Rear Exhaust Hood 18" or 26" 120v

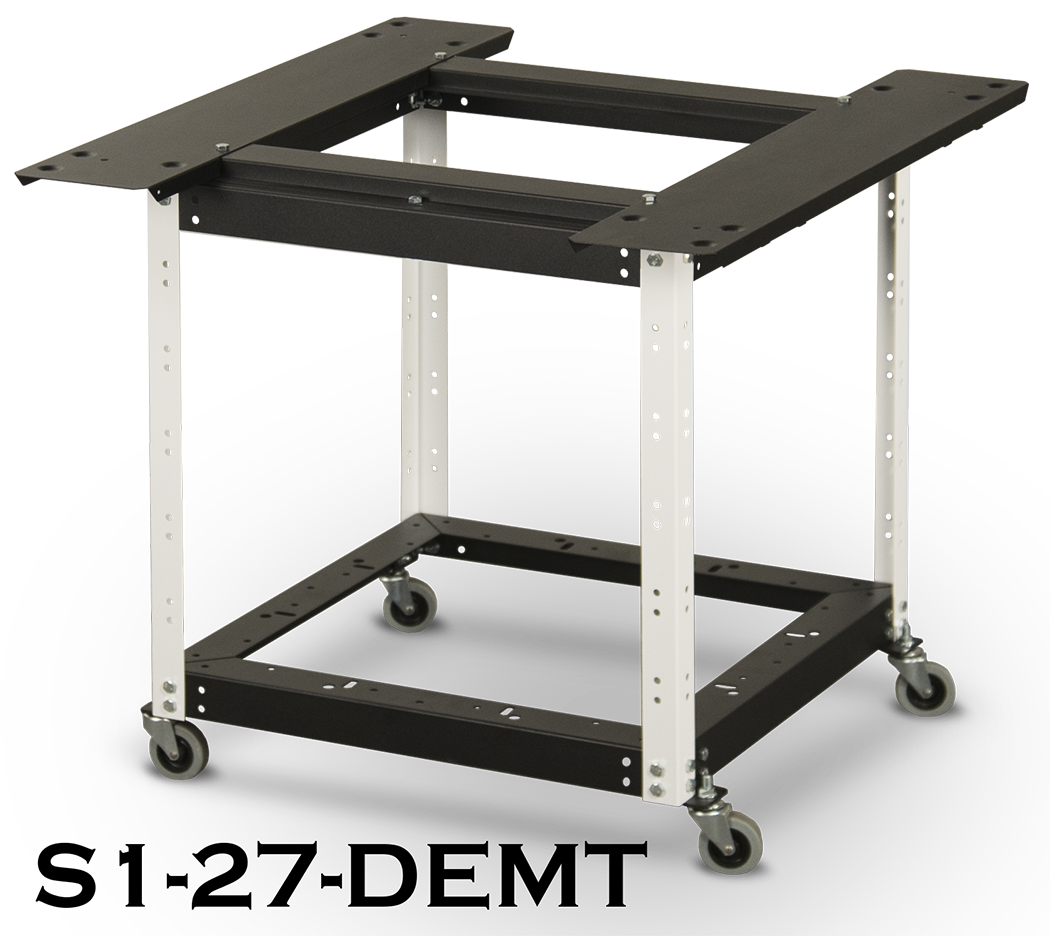

- S1-27-DEMT: Optional Stand with wheels & Dryer mounts
Models available in: 120volts and 240volts
120 volts
240 volts
