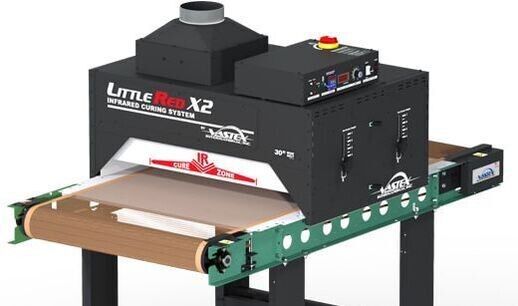

Vastex LittleRed X2 Conveyor Dryer

Vastex LittleRed X2-30 model with 30"inches belt width x 66"inches (167 cm) long conveyor length is offered with Double (2) Heater chambers with 5,200watts to cure up to 260 pcs/hour *plastisol & 90 pcs/hour with Waterbase/Discharge.

This unit includes a powerful Exhaust system, it's expandable with additional chambers that can be added as well as belt extensions. All heaters come with a 15-year warranty.

• Dryer Size: 30" wide x 5.5'ft Long
• POWERFUL: LR X2-30: (2) 240V/2,600 watt heaters (total 5,200 watts)
• Available in: 240volts or 208volts, 22amps, 1phase & (2) 2,600watts Heaters

Model Specifications:

• POWERFUL: LR X2-30: (2) 240V/2,600 watt heaters (total 5,200 watts)

• EFFICIENT Technology with closely spaced coils provides high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing
• DEPENDABLE with Industry-leading 15-year heater warranty
• COOLING Control Powered exhaust system cools the outer cabinet while evacuating moisture and fumes
• Equipped with ACCURATE Digital PID Temperature controller is accurate to +/-1°F
• CONSISTENT: Low friction belt aligner and DC belt speed control with digital display
• HEAVY DUTY:"X-Series" Conveyor Belt Tracking System with Teflon coated fiberglass belt
• ADJUSTABLE: 2 - 7 in. (5 - 18 cm) belt-to-heater clearance, adjustable separately on each side for each heater
• EXPANDABLE: Add 1-1/2'ft (18 in.) or 3'ft (36 in.) Belt Extensions

Electrical Plugs available:

208 volts240 volts

Optional Accessories:

EXH-18-120v Exhaust Hood- Rear Mount exhaust unit powered by 120v designed to remove fumes and vapors as garments exit the heat chamber.

CABX-30-120v Conveyor Air Bar- Speeds the cooling of screen-printed and inkjet-printed garments, caps, koozies, umbrellas and hard goods as they exit a dryer's heating chamber, rapidly cooling/hardening hot ink that is soft or tacky, and making printed items easy to fold or package.

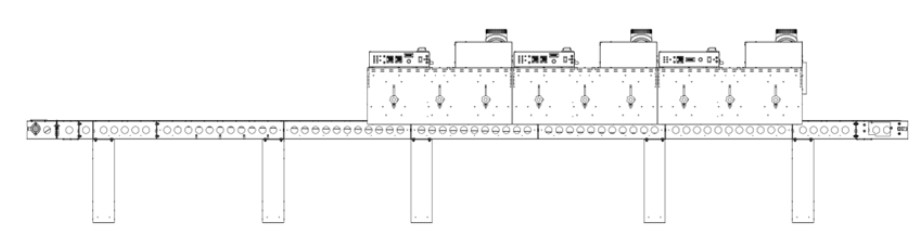

Optional Belt Extensions:

CEX-3018 Conveyor Extension 30" wide x 18" (1-1/2'ft) Length
** Belt Included

CEX-3036 Conveyor Extension 30" wide x 36" (3'ft) Length
** Belt Included

Instructions to Set-up your Conveyor Extension:
